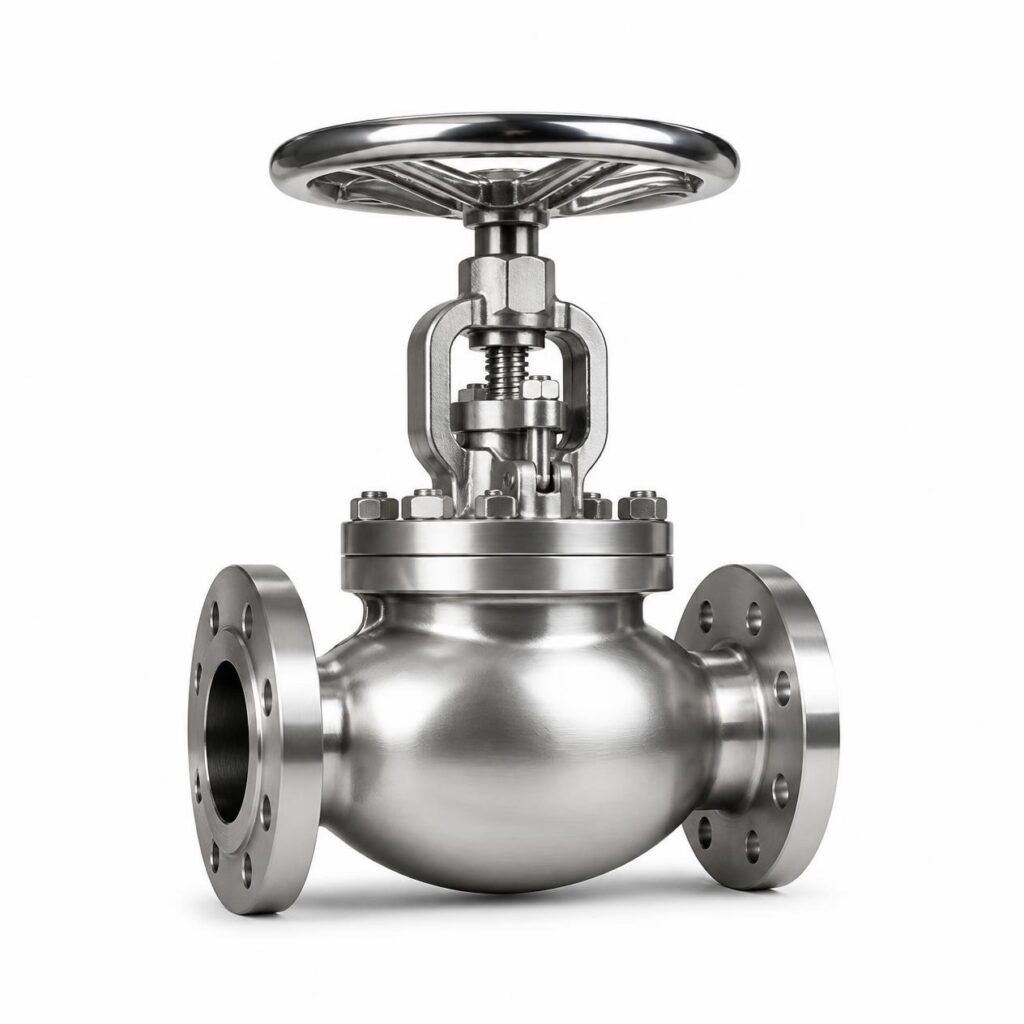

Stainless Steel Globe Valves
Stainless steel globe valves regulate and shut off flow using a disc that moves straight onto a seat, giving fine, stable throttling. Their stainless body resists corrosion from water, steam and chemicals.
We supply SS304 and SS316 globe valves, flanged, threaded and socket weld, for steam, water, chemical and process lines across Pakistan.
Specifications
| Product name | Stainless Steel Globe Valve |
|---|---|
| Valve type / design | Globe valve, bolted bonnet, OS&Y rising stem; T, Y or angle pattern |
| Body material | ASTM A351 CF8 (SS304), CF8M (SS316), CF3M (SS316L); A182 F304 / F316 (forged) |
| Size range | ½" to 12" (DN15 – DN300) |
| Pressure rating | ASME Class 150 / 300 / 600; Class 800 (forged) |
| End connections | Flanged RF, butt weld, socket weld, threaded BSP / NPT |
| Standards | API 623, MSS SP-42, API 602 (forged), ASME B16.34, API 598 testing |
| Applications | Steam, water, chemical, food and pharma regulation |
Industrial uses
- Steam & condensateRegulating steam to heaters, jackets and exchangers.
- Cooling waterBalancing flow through coolers and condensers.
- Chemical processingControlled feed and dosing of corrosive fluids.
- Power generationFeedwater, drains, vents and bypass lines.
- Food & pharmaceuticalClean utilities where rust isn't acceptable.
- Marine & coastalSS316 for seawater-exposed service.
Frequently asked questions
What is the difference between a globe valve and a gate valve?
A globe valve regulates flow and can be partly opened for throttling. A gate valve is meant to be fully open or fully closed. Globe valves give better control; gate valves have lower pressure drop.
Should I choose SS304 or SS316?
SS304 suits water, steam and general service. Choose SS316 for coastal sites, chloride-containing water and most chemicals, as it resists pitting corrosion.
Which direction should a globe valve be installed?
Follow the flow arrow cast on the valve body.
Do you supply test certificates?
Yes. Material test certificates and pressure test records can be provided on request.
