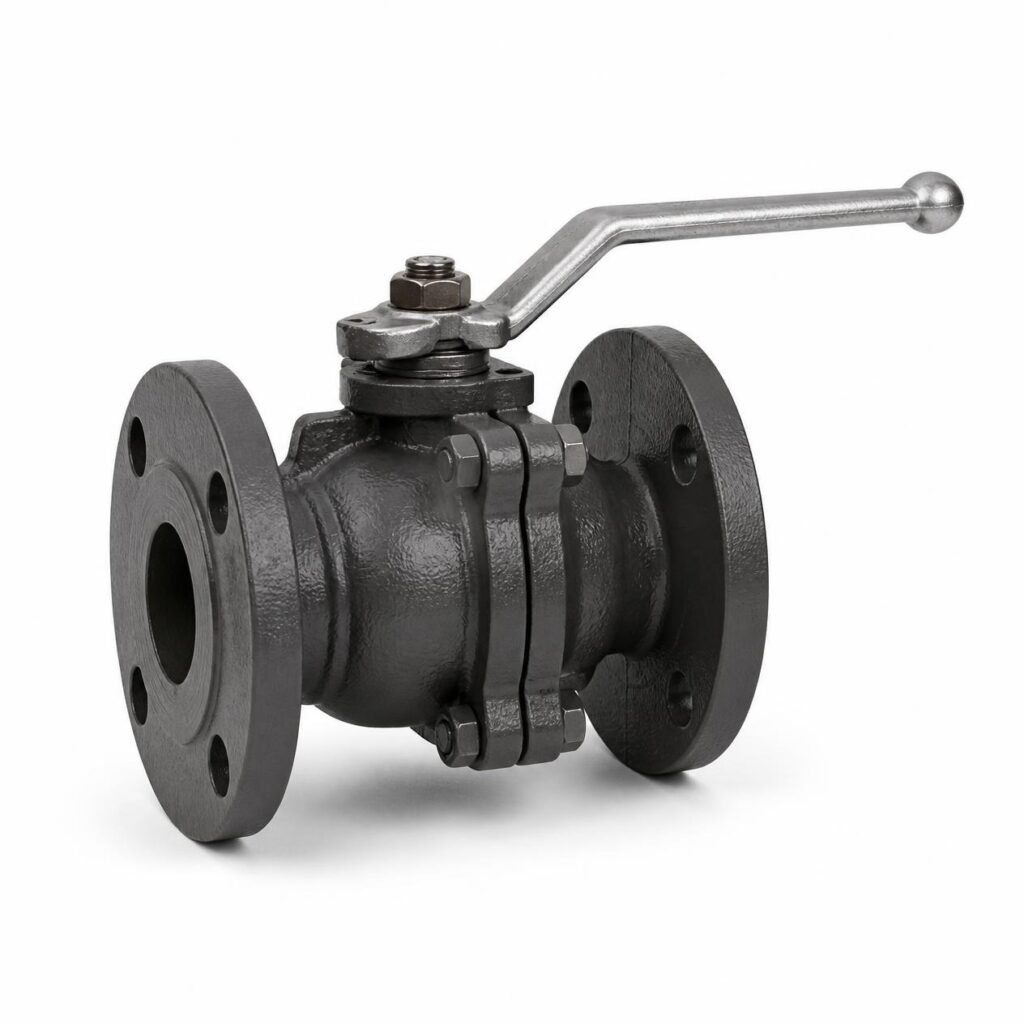

Cast Iron Ball Valves
Cast iron ball valves give quick quarter-turn shut-off with a full or reduced bore, for water and general utility lines where a steel or stainless body isn't needed.
We supply flanged cast iron and ductile iron ball valves with stainless or chrome-plated balls and PTFE seats, operated by lever or gearbox and ready for actuation.
Specifications
| Product name | Cast Iron Ball Valve |
|---|---|
| Valve type / design | Floating ball, two-piece body, full or reduced bore; lever or gear operated |
| Body material | Ductile iron EN-GJS-400 / grey cast iron EN-GJL-250; SS304/SS316 or chrome-plated ball; PTFE / RPTFE seats |
| Size range | ½" to 8" (DN15 – DN200) |
| Pressure rating | PN16; ASME Class 125 / 150 |
| End connections | Flanged (EN 1092-2 PN16 or ASME B16.1/B16.5) |
| Standards | MSS SP-72, ISO 5211 top flange, API 598 testing |
| Applications | Water, HVAC, compressed air and general utility isolation |
Industrial uses
- Water treatmentFast isolation on filters, pumps and dosing skids.
- HVACIsolation on chilled water and condenser circuits.
- Compressed airHeader and branch isolation in plant air systems.
- IrrigationQuick-acting shut-off on distribution lines.
- AutomationISO 5211 top flange for direct actuator mounting.
Frequently asked questions
Where is a cast iron ball valve a good choice?
For water, air and non-corrosive utility service at moderate pressure, where quick quarter-turn operation is wanted at lower cost than a steel or stainless valve.
Can these valves be automated?
Yes. Models with an ISO 5211 mounting pad accept pneumatic or electric actuators without a custom bracket.
What temperature can PTFE seats handle?
PTFE seats generally suit up to around 180°C, but the valve rating depends on pressure and seat grade. Check the manufacturer's pressure–temperature chart for the exact model.
