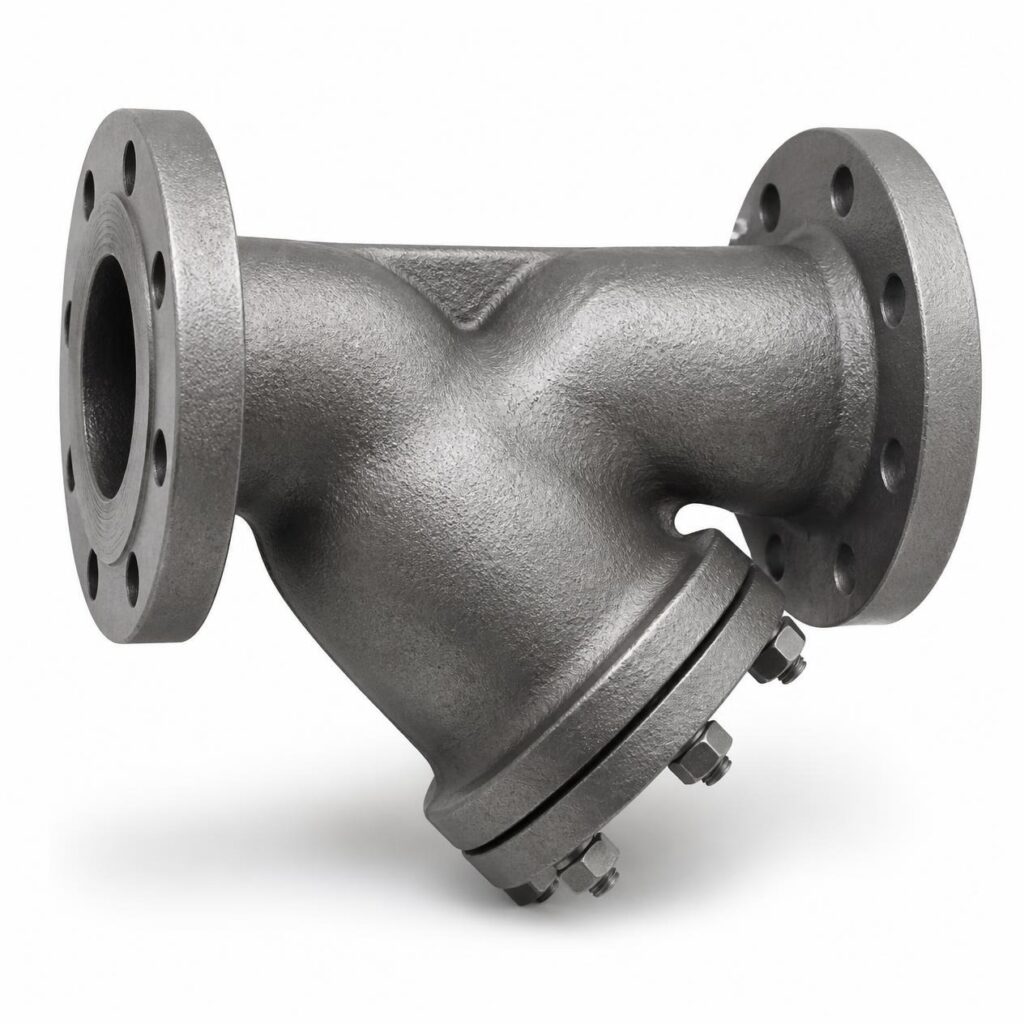

Cast Steel Y-Strainers
Cast steel Y-strainers protect pumps, control valves, meters and steam traps on high-pressure and high-temperature lines by trapping debris on a removable stainless screen.
We supply flanged and butt weld cast steel Y-strainers in carbon, low-temperature and alloy steel with perforated or mesh screens.
Specifications
| Product name | Cast Steel Y-Strainer |
|---|---|
| Valve type / design | Y-pattern strainer, bolted cover, removable screen, blow-off connection |
| Body material | ASTM A216 WCB; A352 LCB; A217 WC6; SS304 / SS316 perforated and mesh screen |
| Size range | ½" to 16" (DN15 – DN400) |
| Pressure rating | ASME Class 150 / 300 / 600 |
| End connections | Flanged RF (ASME B16.5), butt weld, socket weld (small sizes) |
| Standards | ASME B16.34, ASME B16.5 |
| Applications | Steam, oil & gas, power, refinery and process lines |
Industrial uses
- Steam systemsProtecting control valves, PRVs and traps.
- Oil & gasFiltering ahead of meters and pumps.
- Power plantsProtecting feedwater and cooling water equipment.
- RefineriesProcess line debris protection.
- Chemical plantsProtecting dosing pumps and valves.
Frequently asked questions
Why cast steel instead of cast iron?
Cast steel handles higher pressures, higher temperatures, thermal shock and hydrocarbon service where cast iron isn't permitted.
Can I add a blow-down valve?
Yes. Most cast steel Y-strainers have a tapped blow-off connection on the cover for a drain or blow-down valve.
How are screens specified?
By perforation size (e.g. 1.5 mm or 3 mm holes) and, where finer filtration is needed, a mesh liner such as 40 or 100 mesh.
