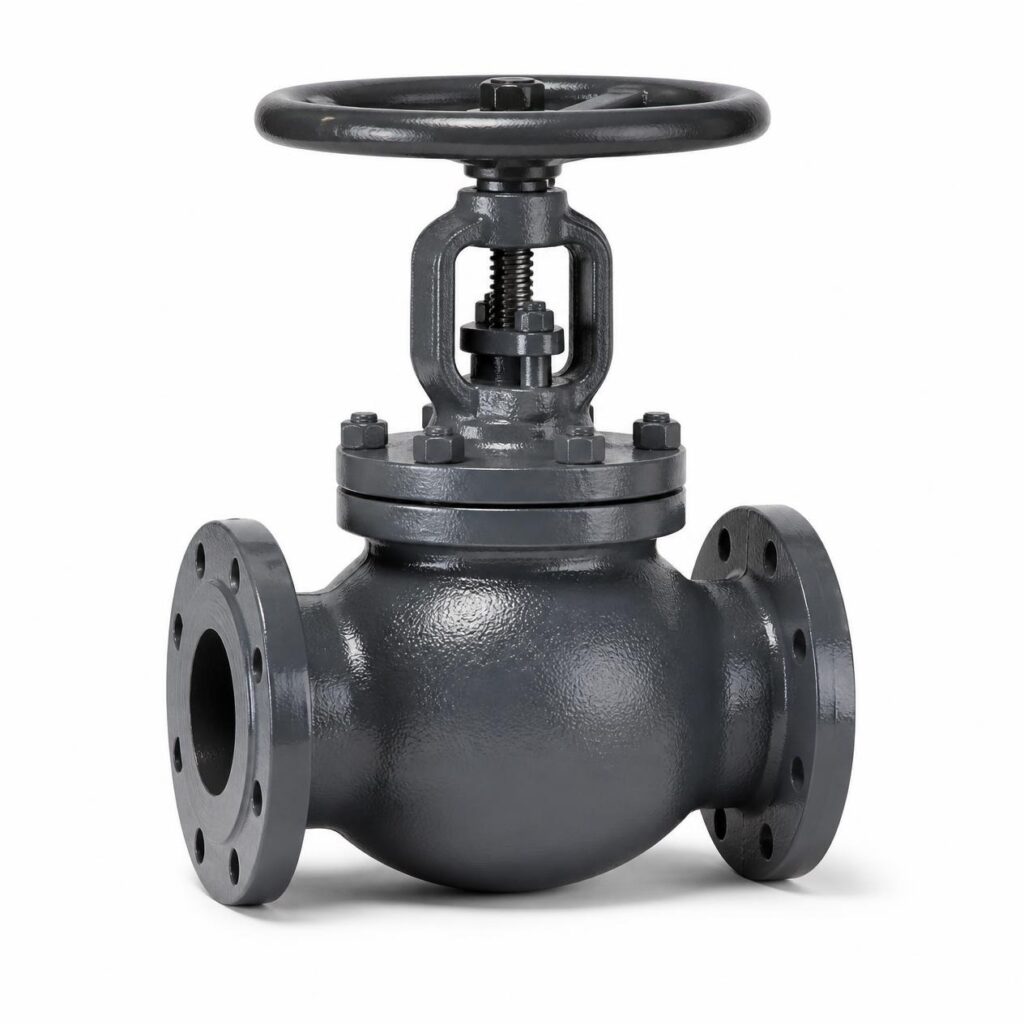

Cast Iron Globe Valves
Cast iron globe valves regulate flow using a disc that lifts off a seat in a straight line. The gradual opening gives stable throttling control, which gate valves cannot provide.
We supply flanged cast iron and ductile iron globe valves with bronze or stainless steel trim for low-pressure steam, hot water and HVAC regulating duties.
Specifications
| Product name | Cast Iron Globe Valve |
|---|---|
| Valve type / design | Globe valve, bolted bonnet, rising stem; straight or angle pattern |
| Body material | Grey cast iron ASTM A126 Class B / EN-GJL-250; ductile iron EN-GJS-400; bronze or SS trim |
| Size range | ½" to 12" (DN15 – DN300) |
| Pressure rating | PN16; ASME Class 125 / 250 |
| End connections | Flanged (EN 1092-2 PN16 or ASME B16.1) |
| Standards | MSS SP-85, BS EN 13789, API 598 testing |
| Applications | Low-pressure steam, hot water, HVAC and regulating service |
Industrial uses
- Low-pressure steamRegulating steam to heaters, radiators and process equipment.
- Hot water systemsBalancing flow in boiler and heating circuits.
- HVACFlow regulation on chilled and condenser water circuits.
- Bypass linesManual control around control valves and steam traps.
- Textile & food plantsUtility steam and hot water regulation.
Frequently asked questions
Why use a globe valve instead of a gate valve?
A globe valve can be partly opened to set a flow rate accurately and holds that position steadily. A gate valve is only for fully open or fully closed service.
Is cast iron suitable for steam?
Grey cast iron is used for low-pressure saturated steam within its rated pressure and temperature. For higher pressures, temperatures or shock loading, choose ductile iron or cast steel.
Which way should a globe valve be installed?
Follow the flow arrow on the body. Most globe valves are installed with flow entering under the disc.
