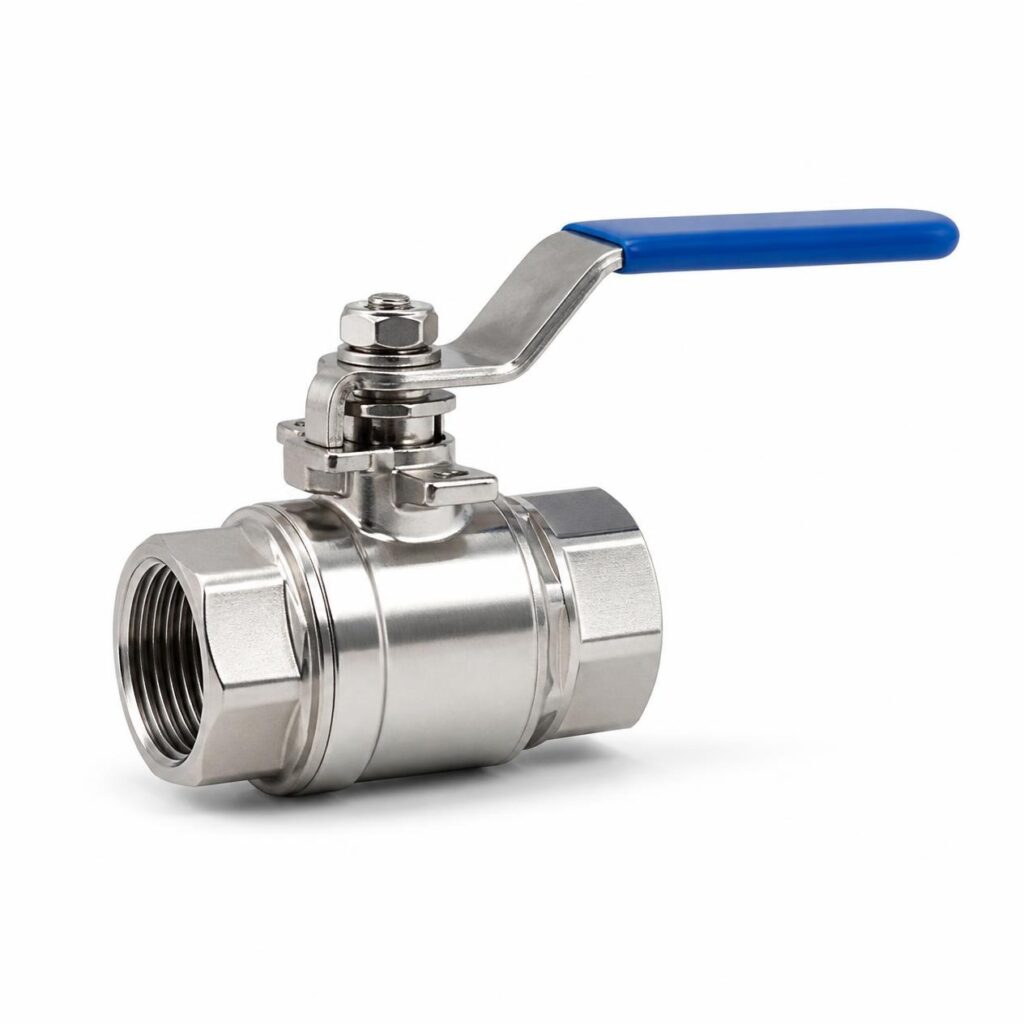

Stainless Steel Ball Valves
Stainless steel ball valves give quick quarter-turn shut-off with excellent resistance to corrosion. They're used wherever rust, contamination or aggressive fluids rule out carbon steel and iron.
We supply one-, two- and three-piece SS304 and SS316 ball valves, threaded, socket weld and flanged, including sanitary and ISO-mounting-pad designs for automation.
Specifications
| Product name | Stainless Steel Ball Valve |
|---|---|
| Valve type / design | Floating ball; 1-piece, 2-piece or 3-piece; full or reduced bore |
| Body material | ASTM A351 CF8 (SS304), CF8M (SS316); A182 F304 / F316 (forged); PTFE / RPTFE seats |
| Size range | ¼" to 8" (DN8 – DN200) |
| Pressure rating | 1000 PSI WOG (threaded); ASME Class 150 / 300 (flanged) |
| End connections | Threaded BSP / NPT, socket weld, butt weld, flanged |
| Standards | API 608, ISO 17292, MSS SP-110, ASME B16.34, ISO 5211 |
| Applications | Chemical, food, pharma, water treatment and marine |
Industrial uses
- Chemical processingIsolation of acids, alkalis and solvents.
- Food & beverageHygienic processing and CIP lines.
- PharmaceuticalClean utilities and process water.
- Water treatmentRO plants, dosing and filtration skids.
- Marine & coastalSS316 for seawater and salt-laden environments.
- AutomationDirect-mount pad for pneumatic or electric actuators.
Frequently asked questions
SS304 or SS316?
SS304 suits water, air and mild chemicals. SS316 contains molybdenum, which resists chloride pitting, so choose it for seawater, coastal sites and most chemicals.
What does 1000 WOG mean?
WOG stands for water, oil, gas. A 1000 WOG valve is rated to 1000 psi (about 69 bar) at ambient temperature. The rating falls as temperature rises.
Why choose a 3-piece valve?
The centre section can be swung out for seat replacement without removing the end pieces from the pipe, which is useful on welded lines.
