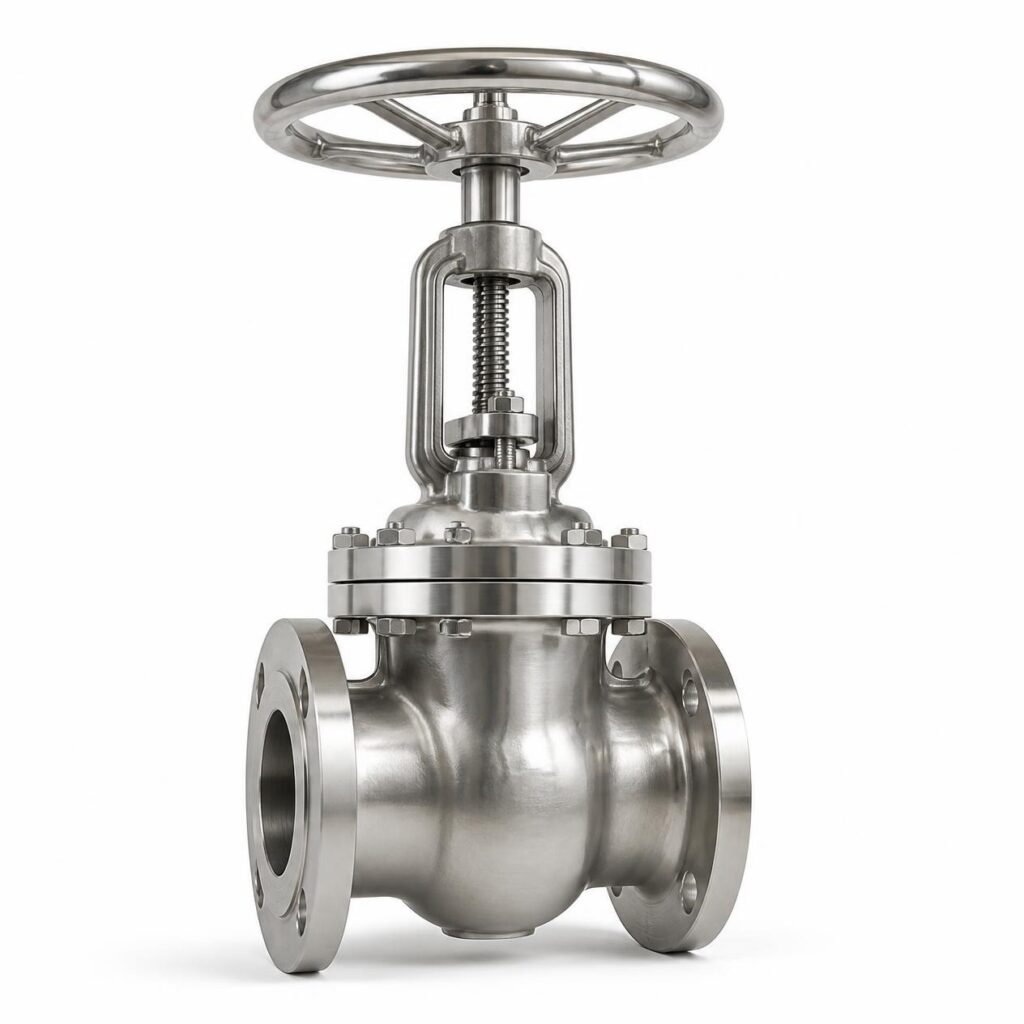

Stainless Steel Gate Valves
Stainless steel gate valves provide full-bore, low-resistance isolation for corrosive, clean and high-purity fluids. Their stainless body and trim resist rust and chemical attack.
We supply SS304 and SS316 gate valves, cast and forged, in threaded, flanged and butt weld versions to API 603 and related standards.
Specifications
| Product name | Stainless Steel Gate Valve |
|---|---|
| Valve type / design | Wedge gate, bolted bonnet, OS&Y rising stem (flanged); screwed bonnet (threaded) |
| Body material | ASTM A351 CF8 / CF8M / CF3M; A182 F304 / F316 (forged); stainless steel trim |
| Size range | ½" to 12" (DN15 – DN300) |
| Pressure rating | ASME Class 150 / 300 / 600; 200 – 800 PSI WOG (threaded) |
| End connections | Flanged RF, butt weld, socket weld, threaded BSP / NPT |
| Standards | API 603, API 602 (forged), MSS SP-42, ASME B16.34, API 598 testing |
| Applications | Chemical, water, food, pharma and marine isolation |
Industrial uses
- Chemical plantsIsolation of corrosive process fluids.
- Water & RO plantsIsolation on high-purity and treated water lines.
- Food & pharmaUtility isolation where rust contamination isn't acceptable.
- Marine & offshoreSeawater and coastal installations.
- Pulp & paperIsolation on bleaching and chemical lines.
Frequently asked questions
What is API 603?
API 603 covers corrosion-resistant, light-wall, bolted-bonnet gate valves with flanged or butt weld ends in Classes 150, 300 and 600.
Can stainless gate valves be used for throttling?
No. Like all gate valves, they are for fully open or fully closed service. Use a stainless globe valve for regulating flow.
What is CF3M?
CF3M is the cast, low-carbon equivalent of SS316L. Low carbon reduces corrosion at welds, so it is preferred for butt weld and socket weld valves.
