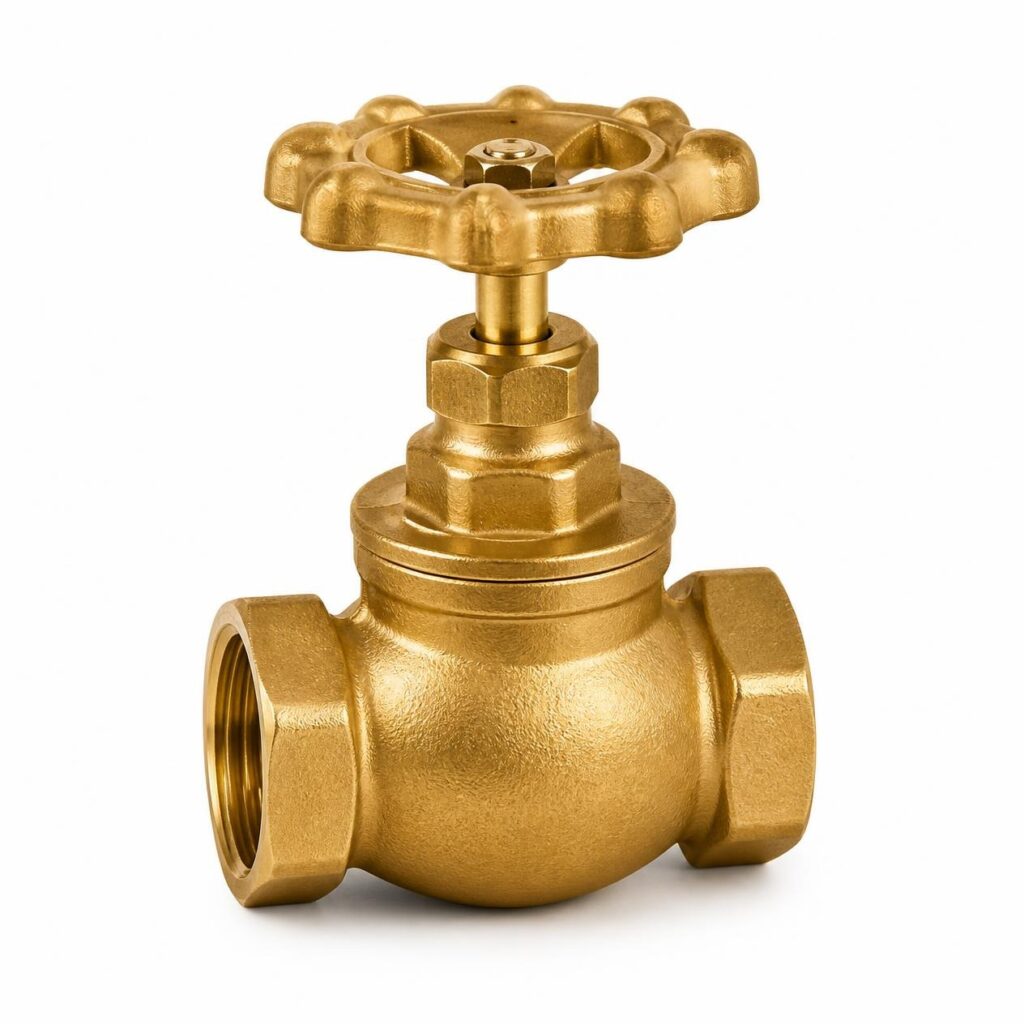

Brass Globe Valves
Brass globe valves give precise flow regulation and tight shut-off on small water, steam and air lines. The disc moves straight onto the seat for gradual, controllable flow.
We supply brass and bronze globe valves with threaded ends and renewable discs for building services, low-pressure steam and general utilities.
Specifications
| Product name | Brass Globe Valve |
|---|---|
| Valve type / design | Globe valve, screwed bonnet, rising stem, renewable disc |
| Body material | Brass CW617N / bronze; PTFE or metal disc |
| Size range | ½" to 2" (DN15 – DN50) |
| Pressure rating | PN16 – PN25 (size dependent) |
| End connections | Threaded BSP / NPT female |
| Standards | BS 5154, MSS SP-80 |
| Applications | Water, low-pressure steam, compressed air and HVAC |
Industrial uses
- Low-pressure steamRegulating steam on small heaters and presses.
- Water systemsFlow regulation and balancing.
- Compressed airThrottling on air supply lines.
- HVACBalancing on heating and cooling circuits.
- LaboratoriesRegulating utility water and air lines.
Frequently asked questions
Why use a globe valve instead of a ball valve?
A globe valve can be set partly open to control flow accurately. A ball valve is best for fully open or closed service.
Can the disc be replaced?
Yes. Many brass globe valves have a renewable disc, so the seal can be restored without replacing the whole valve.
Are brass globe valves suitable for steam?
Bronze and brass globe valves are used for low-pressure steam within their rated pressure and temperature. Higher steam pressures need steel valves.
