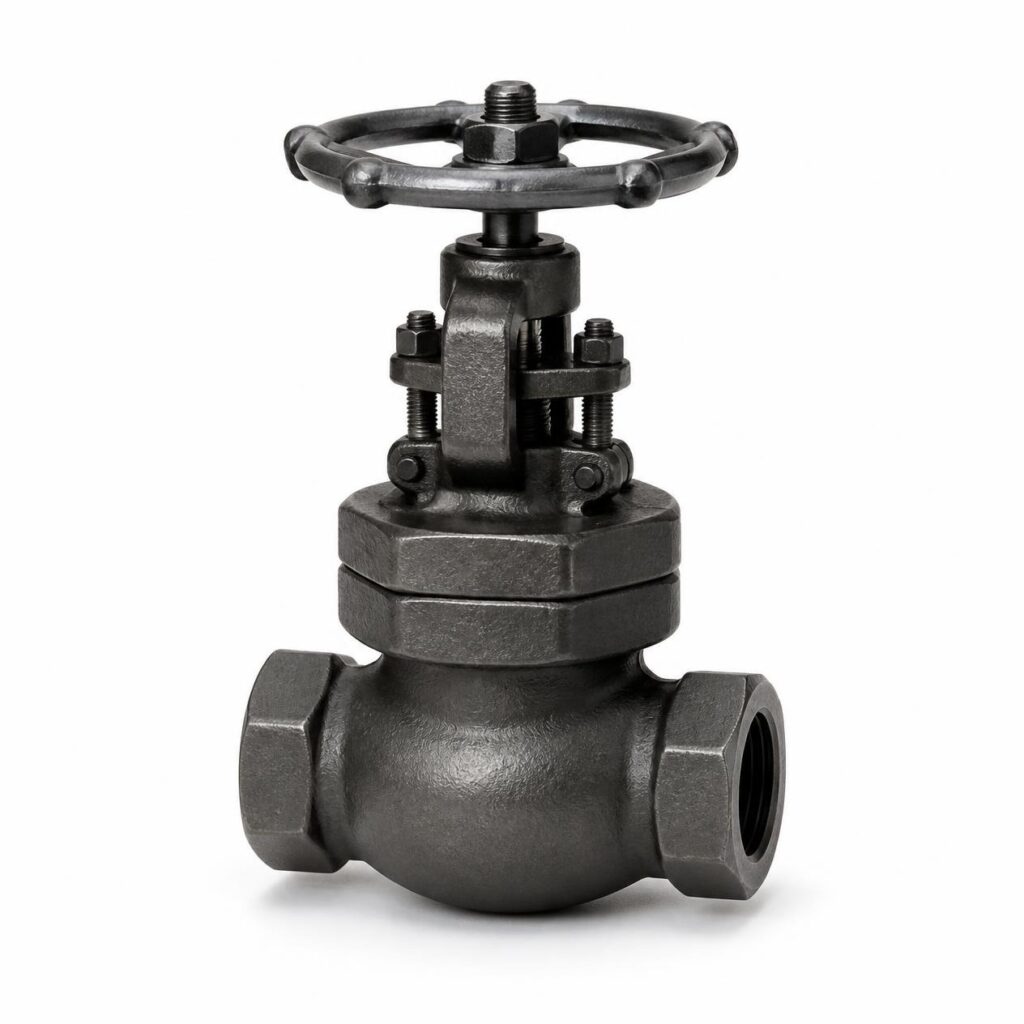

Forged Steel Globe Valves
Forged steel globe valves give precise flow regulation and tight shut-off in small-bore, high-pressure lines. The disc moves straight onto the seat, so each turn of the handwheel changes flow gradually.
We supply forged globe valves to API 602 in carbon, alloy and stainless steel, with socket weld, threaded or butt weld ends, including bellows-sealed options.
Specifications
| Product name | Forged Steel Globe Valve |
|---|---|
| Valve type / design | Globe valve, bolted or welded bonnet, OS&Y rising stem; plug or needle disc |
| Body material | ASTM A105 / A105N; A350 LF2; A182 F11 / F22; A182 F304 / F316; 13Cr or stellite trim |
| Size range | ½" to 2" (DN15 – DN50) |
| Pressure rating | Class 800 / 1500; Class 2500 on request |
| End connections | Socket weld (ASME B16.11), threaded NPT, butt weld |
| Standards | API 602, ASME B16.34, BS 5352, API 598 testing |
| Applications | Steam, power, oil & gas and chemical regulating service |
Industrial uses
- Steam systemsRegulating drains, vents and small steam supplies.
- Power plantsBoiler instrumentation, sampling and drain lines.
- Oil & gasSmall-bore throttling and bypass lines.
- Chemical plantsControlled dosing on high-pressure lines.
- Instrument linesIsolation and throttling at gauges and transmitters.
Frequently asked questions
When should I choose a forged globe valve over a forged gate valve?
Choose a globe valve when you need to throttle or adjust flow, or need very tight repeatable shut-off. Choose a gate valve for low-pressure-drop isolation only.
What is a bellows-sealed globe valve?
A metal bellows around the stem creates a hermetic seal so fluid can't escape along the stem. It is used for steam, thermal oil and toxic or hazardous fluids.
Which end connection should I use?
Socket weld is the standard for high-pressure small-bore piping. Threaded ends suit lower-risk utility service. Butt weld suits critical or high-temperature lines.
