Butterfly Valves Supplier in Pakistan

Butterfly valves control flow with a disc that rotates a quarter turn inside the pipe bore. Their compact, lightweight body makes them far easier and cheaper to install on large-diameter lines than gate or globe valves, while still giving reliable isolation and regulation. A. Karimjee & Sons supplies butterfly valves for water, HVAC, chemical and industrial piping in wafer, lug and flanged designs.

Butterfly Valve Specifications

Download datasheet

Butterfly Valve Specifications
Valve type	Butterfly Valve — quarter-turn isolation & regulation
Types available	Wafer, Lug, Double Flanged, High Performance
Body materials	Carbon Steel, Stainless Steel (SS304 / SS316), Cast Steel, Cast Iron, Ductile Iron, Brass
Disc materials	Stainless Steel, Nickel-Plated Ductile Iron [confirm]
Operation	Lever, Gear, Pneumatic, Electric
Size range	[confirm]
Pressure class	[confirm]
Standards	API, ANSI, ASME, ASTM, BS, DIN and ISO

Types We Supply & How to Choose

Butterfly Valve Types

Selection guide

Wafer: Clamped between two flanges; the most economical design, but the line must be isolated to remove it.

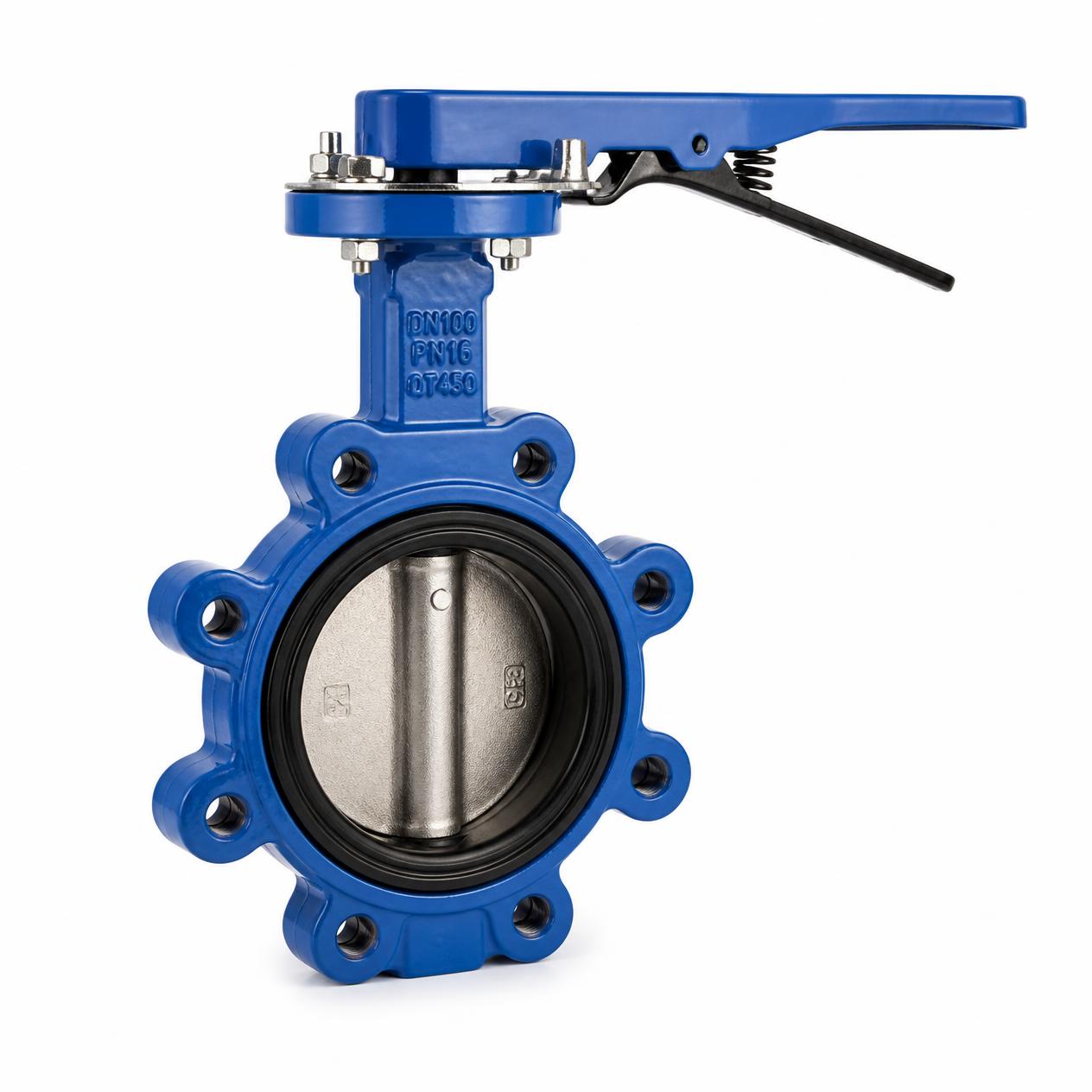

Lug: Threaded lugs let either pipe side be disconnected as a dead end — needed for end-of-line or single-side maintenance.
Double Flanged: Bolted flanges both sides for larger-diameter and higher-pressure lines.
High Performance: Double-offset design for higher pressures and tighter shut-off.

Oil & Gas
Petrochemical
Chemical Processing
Water Treatment
Power Generation
Marine
HVAC
Food & Beverage
General Industry

Key Features & Benefits

Compact, lightweight body — low installation cost
Low pressure drop across the open disc
Quarter-turn operation, easily automated
Economical in large diameters
Lever, gear, pneumatic or electric actuation
Fast, reliable isolation and mid-range regulation

Frequently Asked Questions

What is the difference between wafer and lug butterfly valves?

A wafer valve is clamped between two flanges and needs both sides bolted; a lug valve has threaded lugs so either pipe side can be removed independently, allowing dead-end service.

Are butterfly valves good for throttling?

Yes, within limits — they regulate flow well through the mid-range of travel. For precise throttling at low flow, a globe valve is usually the better choice.

What size range is available?

Butterfly valves cover a wide diameter range and are especially cost-effective in larger sizes where gate valves become heavy and expensive.

Need butterfly valves for your project? Tell us the size, body type, disc material and operation — we'll confirm availability.

Request a quote +92-21-32422431
